MS Scenes

MS Scenes store all mixer parameters of the current session on your device.

You can recall MS Scenes on any mixer that is supported by Mixing Station.

This allows you to very quickly get your mix ready on another desk, even from another manufacturer!

Each Scene has a recall scope that is stored with the scene. This allows you to build scenes that only recall specific parameters for some channels. By default, an MS Scene will always recall everything.

Usage

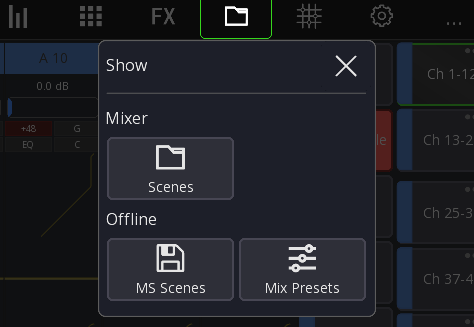

MS Scenes can be accessed via the main menu Show button:

Saving

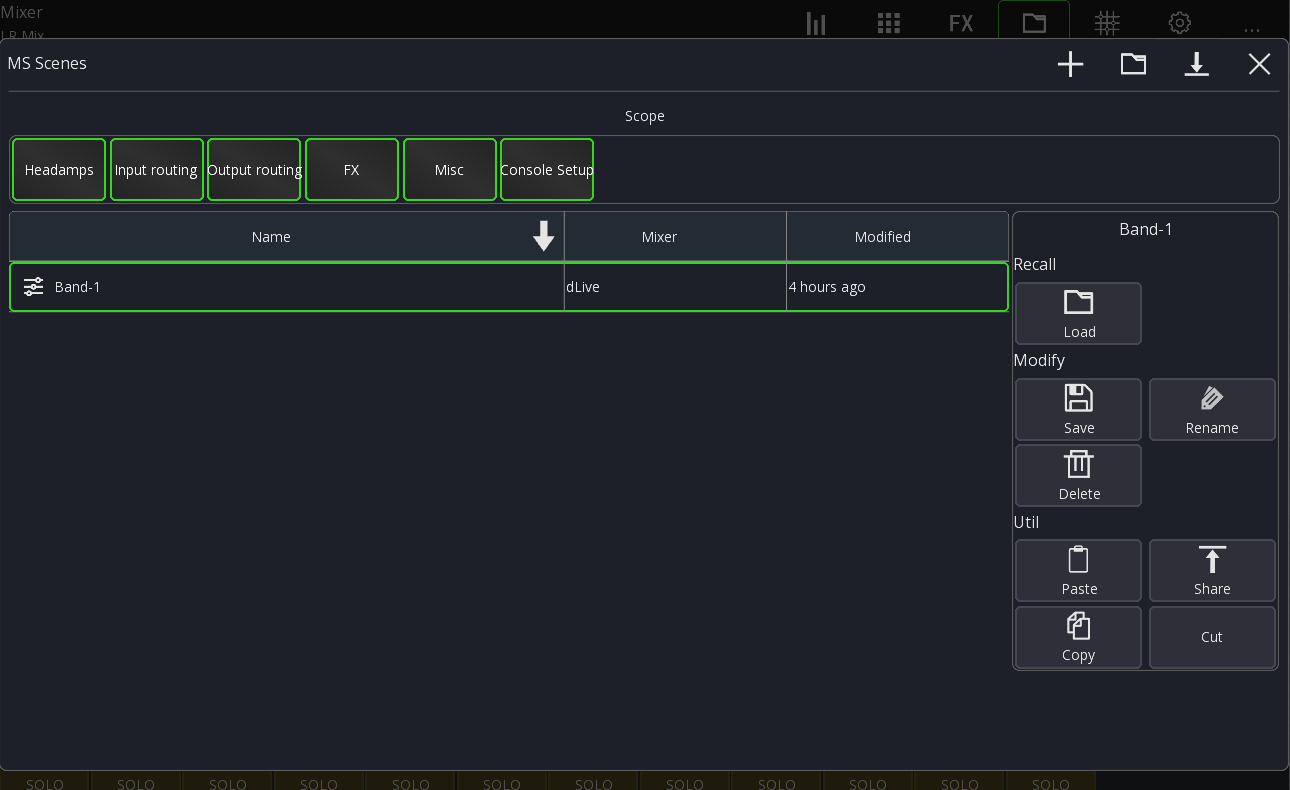

To save a new scene press the + button in the top menu.

A MS Scene will always store all the data, regardless of the selected scope.

Loading

Select the scene you want to load and press the Load button:

In this confirmation dialog you can change what data should be recalled.

Changing the scope from this dialog will only change if for this specific recall. It won't alter the scope stored in the MS scene.

After recalling a scene you may get a list of errors encountered during recall. This is expected when recalling on a different mixer model where certain functionality is missing.

Remap channels

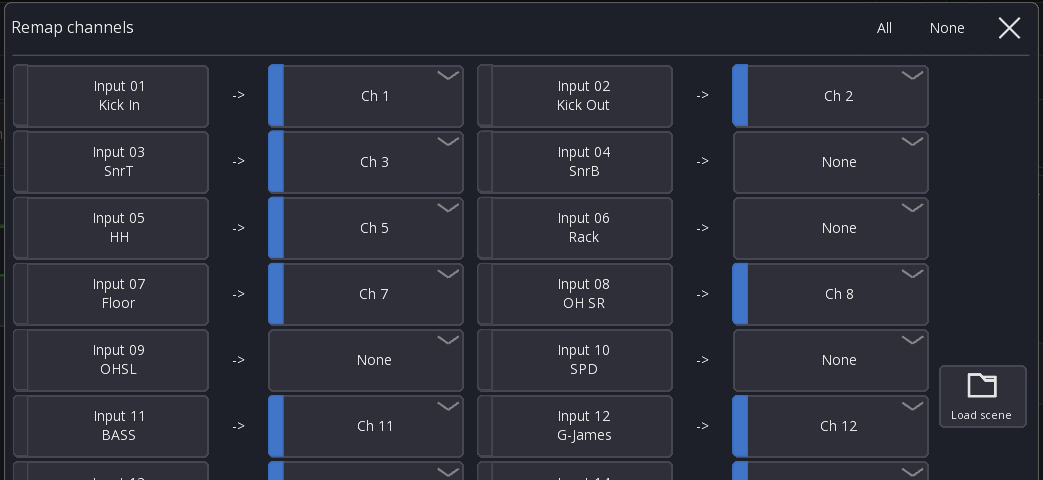

After pressing Remap channels you'll see all channels in the scene with a preview to which channel this data will be applied to:

This is useful if you for example load the scene on a different mixer or a different channel layout.

You can also map the channel data to None so they don't get recalled.

Scopes

The recall scopes are stored in each MS scene. By default, everything is recalled.

If you want to permanently change what should be recalled from a specific scene press the Scope button:

In this dialog you can modify which data should be recalled.

The scopes in the top bar are global parameters such as FX. In the table below you can configure the recall scope for each channel in the MS scene.

Press and hold a scope name (for example Delay) to toggle the scope for all channels. Similar to the routing matrix you can press and hold a cell to "draw" the scopes as well.

By pressing Save the scope configuration is saved in the MS scene.

Here is a table of what each scope contains

Mixer-Data Scope	Description
Headamps	Gain, Phantom, Pad for ALL headamps
Input routing	Wing: Source configs, X32: Input blocks
Output routing	Output sockets, Direct outs
FX	All FX racks
Misc	Mutegroups, AMM (Automix)
Console Setup	PAFL Settings, other console preferences

Channel Scope	Description
Routing	Input routing
Insert (FX)	The FX parameters of any inserted FX
Insert Routing	Insert routing data
Headamp	Gain, Phantom of the headamp assigned to the channel
Config	Phase invert, Trim, DCA/Mutegroup assignment, Mixbus tap point
Link	Channel link
Delay	Delay on/off and times
Name	Name and color
Gate	Gate / first dynamics slot
EQ	Preamp filters, PEQ, GEQ
Dyn	Compressor / second dynamics slot
Sends	Send levels, on/off and tap points
Main	Fader, Mute, Pan

File handling

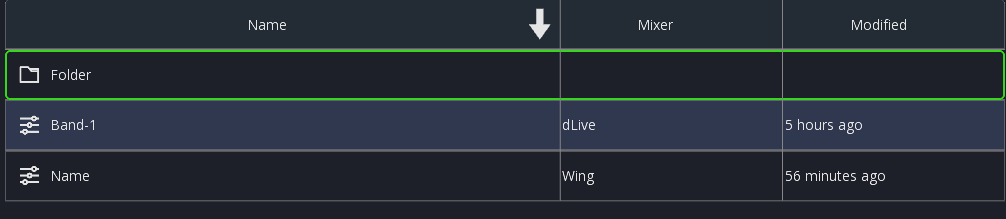

Press the Folder menu item to create a new folder:

To leave the folder double tap on it again:

Moving scenes

1. Select the scene you want to move
2. Select Cut
3. Open the folder you want to move the scene to
4. Select Paste
