Set Value action examples

This page provides some examples how the Set value action can be used.

Boost button

Boost a fader by +5dB and decrease again

  1. Add a new custom button to your layout.
  2. Assign the Set value action to the button
  3. Use Relative mode and set Set value to 5
  4. Assign the Current channel->Main->Fader action to the Set value action

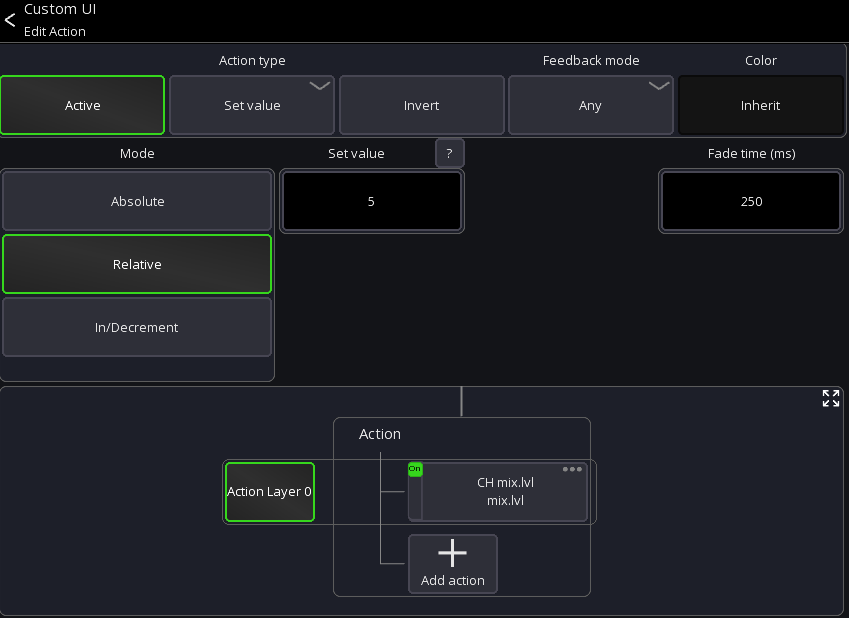

Set boost

Changing Alt Input Source

You can create a button to change the input source of a channel to the "alt" input (if your mixer has that functionality).

  1. Add a new custom button to your layout.
  2. Assign the Set value action to the button
  3. Use Absolute mode and set Set value to 1 and Unset value to 0
  4. Set the Fade time to 0
  5. Assign the Current channel->Config->Src Sel action to the Set value action

Here is the full configuration:

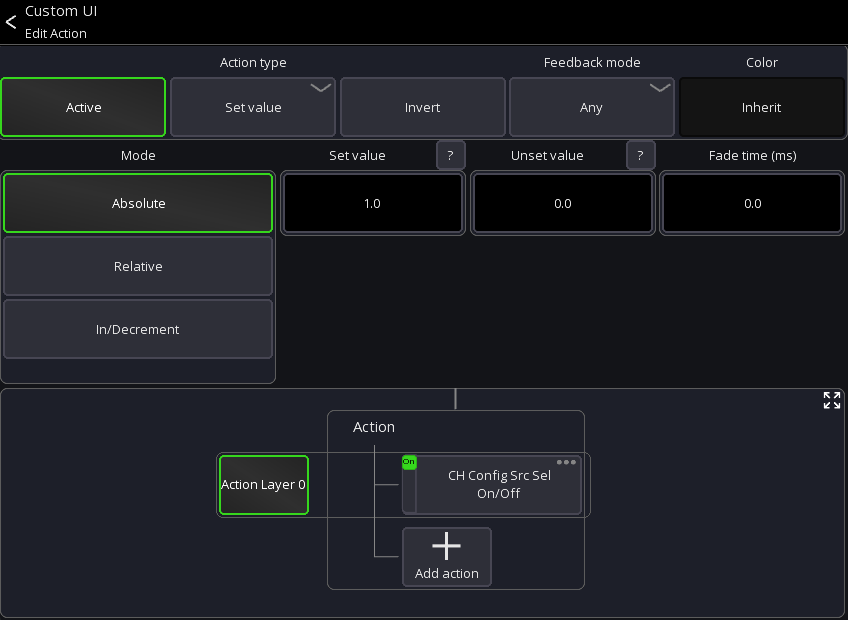

Set alt source
