Wireless Device Integration
Currently in beta test (V2.5.0)
Mixing Station allows you to connect to your wireless audio receives for battery and signal level information.
The feature requires an active subscription (or the RF Integration license), but can be tested for 10min per session
without a license.
Compatible Devices
| Brand | Series | Firmware | Remarks |
|---|---|---|---|
| Shure | AD4D-A | >= 1.4.15.0 | Tested |
| Shure | AD4Q-A | >= 1.4.15.0 | Tested |
| Shure | ULXD4 | >= 2.7.6 | Untested |
| Shure | ULXD4D | >= 2.7.6 | Tested |
| Shure | ULXD4Q | >= 2.7.6 | Tested |
| Shure | QLXD4 | >= 2.7.1 | Untested |
| Shure | SLXD4 | >= 1.4.4 | Untested |
| Shure | SLXD4D | >= 1.4.4 | Untested |
| Shure | SLXD4Q+ | >= 1.4.4 | Untested |
| Shure | UR4D | Tested | |
| Sennheiser | EM6000 | >= 3.2.1 | Untested |
| Sennheiser | EM 300-500 G4 | >= 1.2.0 | Tested |
| Sennheiser | EM 300-500 G3 | Tested | |
| Sennheiser | EM 2000-2050 | Tested | |
| Sennheiser | EW-DX | Tested |
Sennheiser
EW-DX and G4 using firmware >= 4.0 requires the "legacy mode / SSCV1" to be enabled in WSM.
Shure
Make sure to enable 3rd party control
Note that due to lack of hardware access most of the integrations are yet untested. This table will be updated once I receive more feedback.
IEM transmitters are currently not supported.
Usage
In the Mixer view open the main menu and select RF Devices:
In the RF Devices view you can add new RF receivers using the top menu buttons:
The table shows you all configured devices and RF channels.
In the Assigned column you can configure where the RF receives is connected to your mixer.
This allows mixing station to know which audio channel corresponds to which RF channel.
In the Status column you can see the battery level, RF level and audio level.
If a wireless device is running low on battery, a global warning will be displayed (see top left in the screenshot).
Adding new devices
Press the + icon in the top menu to add new devices. Depending on the device model, an automatic search is available:
Otherwise, you'll have to manually enter the IP address of the device.
When you add a device using the search results Mixing Station will automatically search for the device again when opening the app, allowing you to have the receivers on dynamic IP addresses (DHCP).
When manually entering the IP address Mixing Station will only try to connect to that specific IP.
Battery indicator
The battery indicator will display additional information based on the state of the wireless device.
- Red border: Device is muted
- Cross: Wireless device is disconnected
- Battery level
Channel Strip integration
By default, the channel strip will show the battery and RF level.

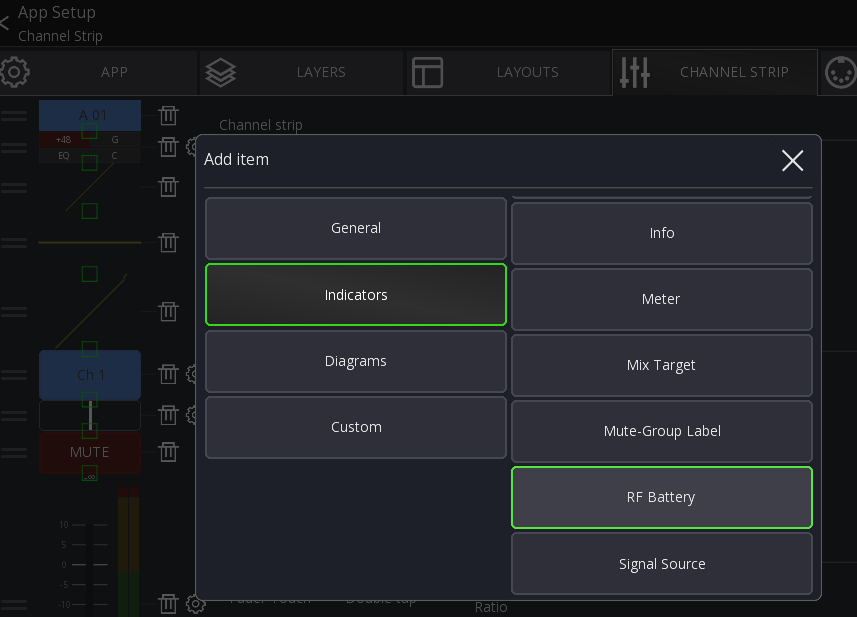

You can also add them manually in the channel strip editor in case you're not using the fader UI element.
