MS Channel Presets
MS Channel Presets store all parameters of a single channel on your device.
You can recall a MS Channel Presets on any mixer that is supported by Mixing Station.
This allows you to very quickly get your mix ready on another desk, even from another manufacturer!
Usage

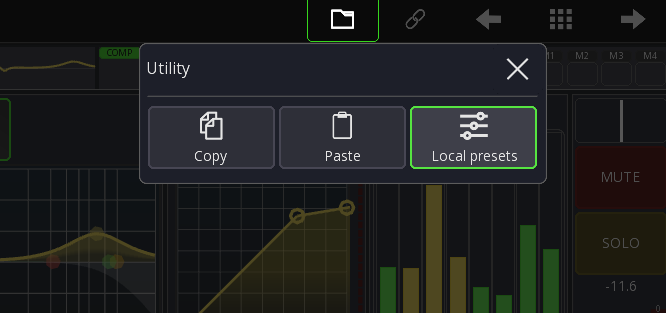

In the channel view select the Folder menu item:

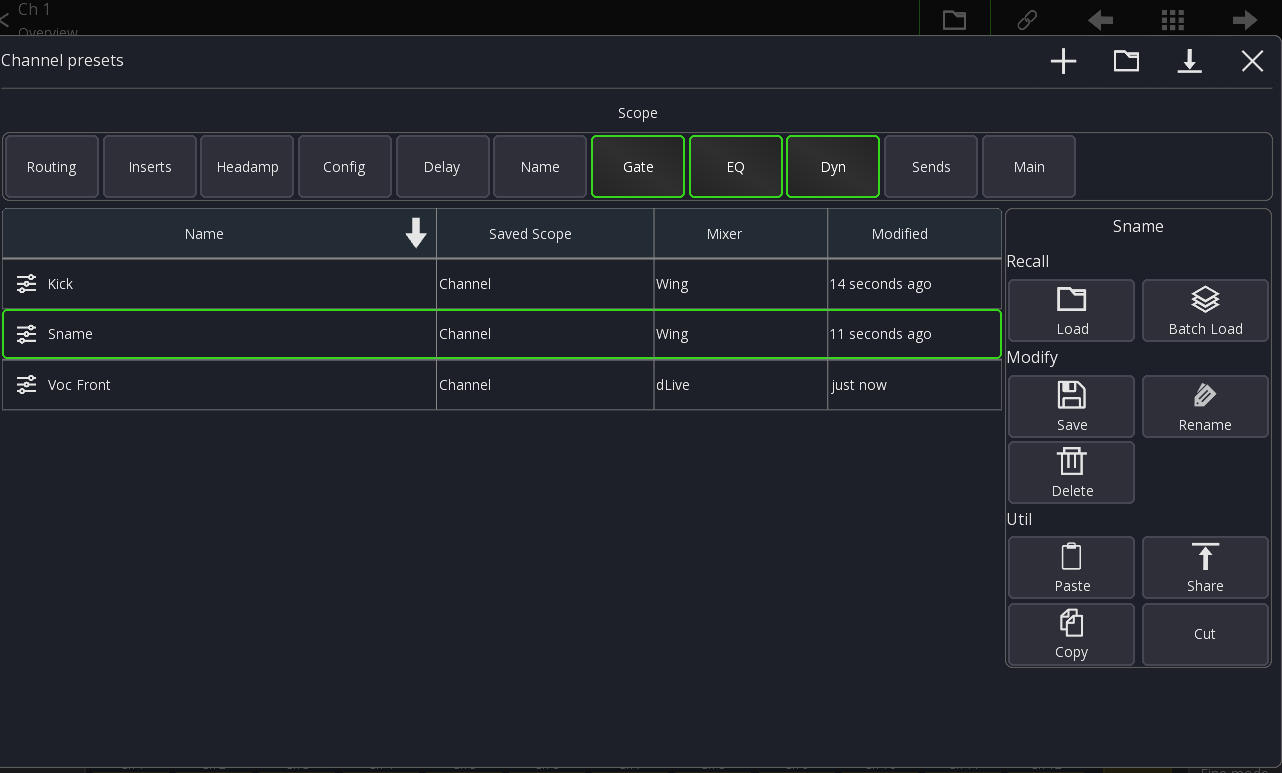

This view will show all presets that match the currently selected scope. Any preset that does not match the scope will not be shown.
Saving
To save a new preset press the + button in the top menu.
A MS Channel Preset will only store the data selected as Scope
Loading
Select the preset you want to load and press the Load button.
Scopes
The scope defines what data should be recalled/stored.
The selected scope will be adjusted based on the view that is currently open.
So for example when opening the channel presets from the Gate view, it will only have Gate selected as scope.
Here is a table of what each scope contains
| Scope | Description |
|---|---|
| Routing | Channel input routing |
| Inserts | Insert routing |
| Headamp | Gain/Phantom/Pad |
| Config | Trim, DCA/Mute assign, Link, A&H: Preamp model |
| Delay | Channel delay |
| Name | Name, Color, Icon |
| Gate | All Dyn1/Gate parameters |
| EQ | All EQ parameters (PEQ+GEQ) |
| Dyn | All Dyn2/Compressor parameters |
| Sends | Send Level/On/Tap |
| Main | Fader, Mute, Pan |
