Mixing

This section describes the basic steps for Mixing with Mixing Station

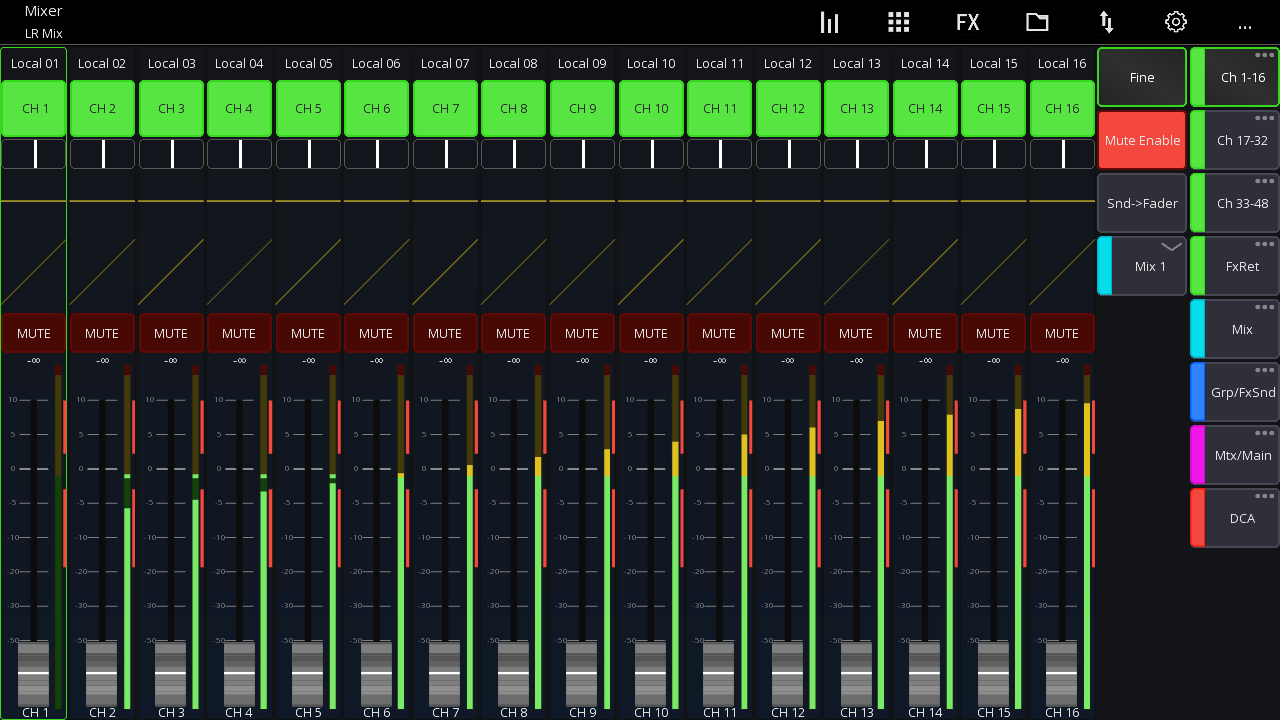

Mixer

After connecting to your mixer (or starting offline mode) you'll see the "Mixer" view:

Mixer

In this view you'll see the channels according to the currently selected layer as well as the previous mentioned "Mixer sidebar".

To change the number of visible channels, checkout the layers documentation.

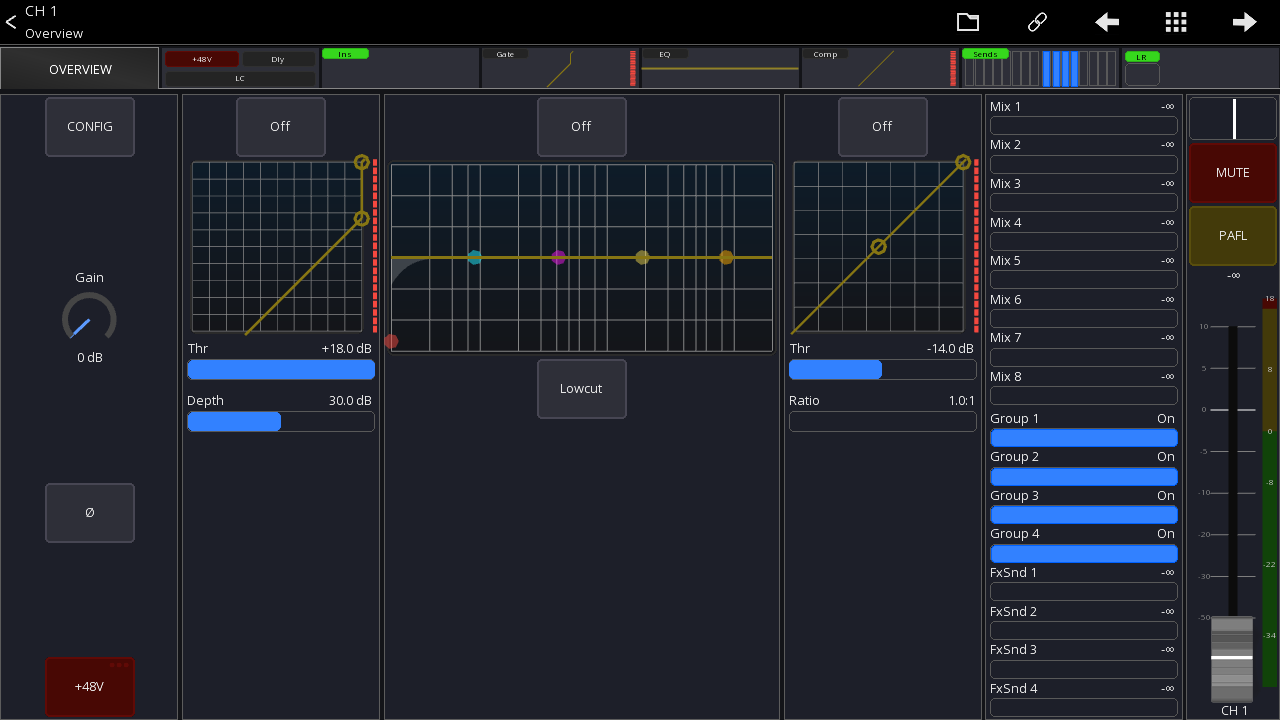

Channel View

When pressing a channel it will by default open the channel view:

channel view

In this view you can control all parameters of a single channel. The tabs at the top represent the different processing blocks of a channel (for example gate, eq, compressor).

The top menu provides various utility functions such as:

The sliders on the right are providing a quick overview over all sends this channel has. You can press a slider to open the sends view directly see the pressed send.

Fullscreen mode

In the channel view some views have a so called fullscreen mode indicated by the arrow icon in the top menu:

fullscreen mode

Pressing this button will hide certain UI elements to increase the size of the center view:

Disabled Enabled
disabled enabled

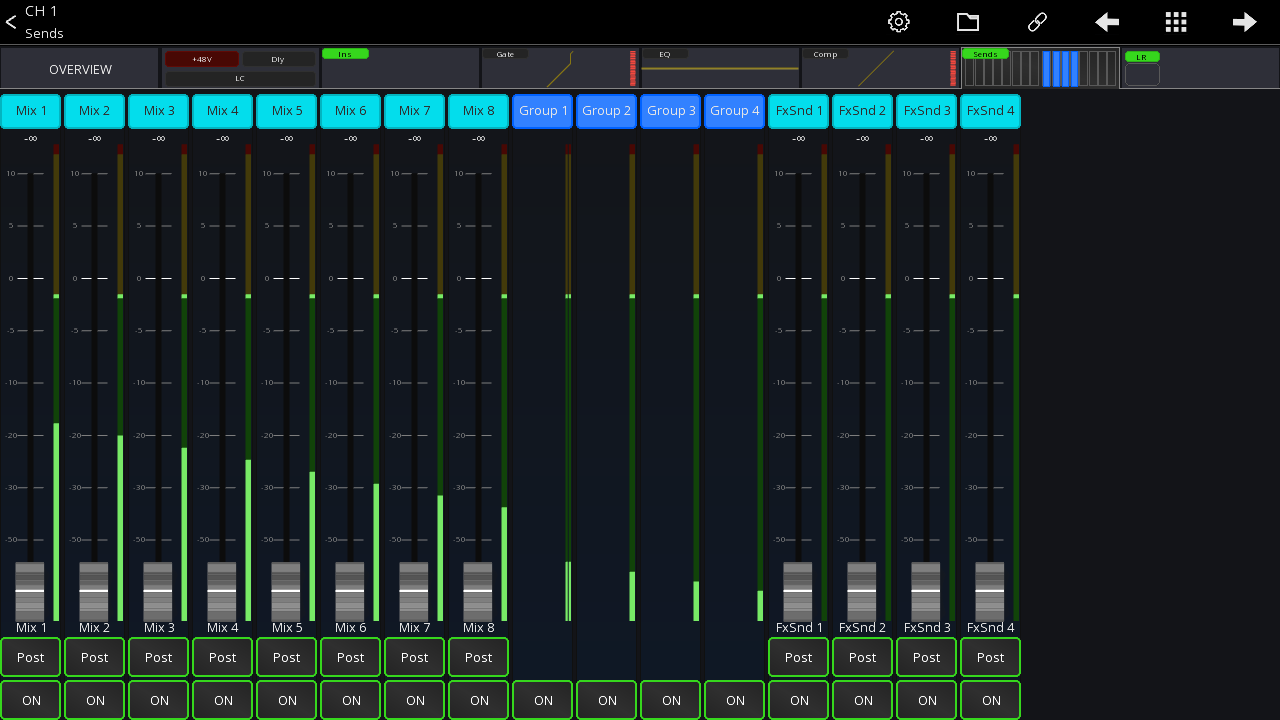

Sends view

The sends view shows all sends of a single channel:

Sends view

Depending on the mixer not all sends will fit on a single page. In the top menu will be a toggle button (in this case labeled 1-12) to go through all the different pages.
