Custom layout

This feature allows you to fully customize the mixer view to match your workflow and create new views for many different purposes (e.g. fixed installations).

Layouts-Overview This view shows you all layouts currently loaded from your settings.

Behaviors

A layout can be configured to have different behaviors, which are also indicated in the Mixer and Startup column above.

  • Override mixer layout: A layout with this flag will replace the default mixer layout of the app.
  • Open on start: The layout will be opened directly after connecting to your mixer. You'll be able to press the back button to return to the mixer view.
  • Default: The layout must be opened manually using a button or via the table shown above.

Terminology

  • UI item: Buttons, Knobs, Channel strips, ...
  • Action: An action defines what an UI element should be controlling (for example Mute, Fader level, ect)

The following describes how layouts, UI items and actions correlate to each-other.

LayoutUI ItemsActionsA single layout has multiple UI itemsA single UI item can have multiple actions

Quickstart

  1. Open the menu of the main view
  2. Menu -> Setup -> Layouts
  3. Press the + menu entry to add a new layout
  4. Add and move UI items to your taste

By default, the first custom layout you create will override the mixer layout.

If you want to go back to the app's default, simply delete your layout.

Example: Tap Delay Button

The following example shows how to add a tap delay button to your mixer layout.

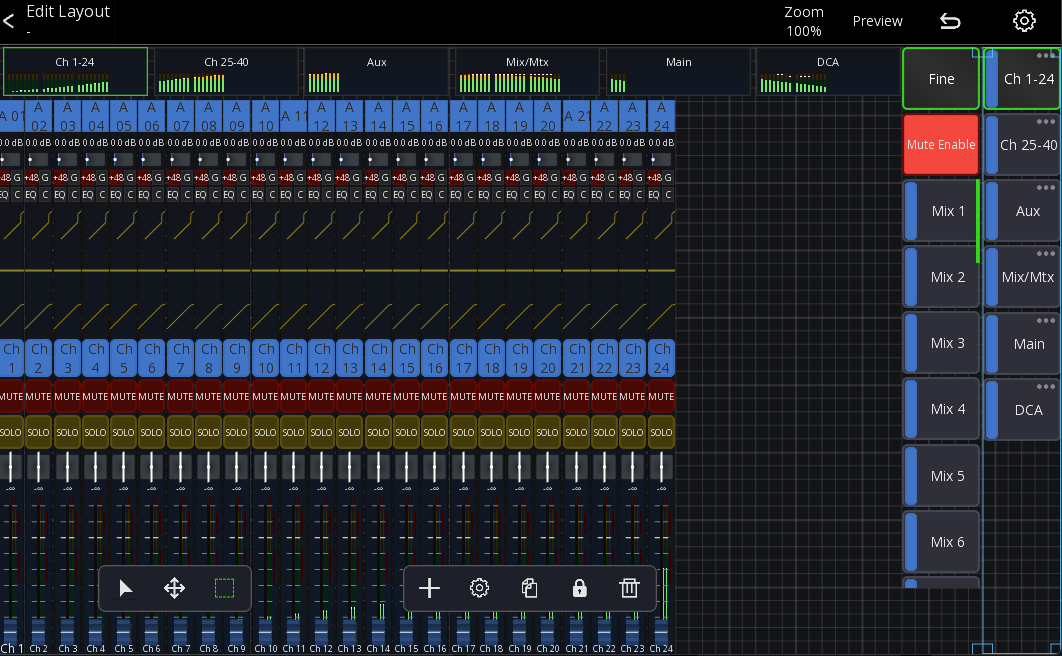

Using the layout editor

This section describes how to use the layout editor.

Moving and resizing

By default, you can simply drag items to move them to another position. To resize an item, simply drag them from one of their edges, as indicated by the green rectangle in each edge.

Sometimes it's hard to move or resize small items, in this case you can press the top Size + Move menu button, which will change the modes of the editor.

The following describes the available modes

Mode Description
Size + Move Items can be moved and resized, depending on where they are touched (default).
Resize Dragging an item causes it to be resized.
Move Dragging an item causes it be moved.

Adding new items

New items can be added via the + symbol in the top menu.

Editing an item

In order to further configure an item simply click on it (without moving it). A dialog will appear with further options:

Layout settings

Copy

Add the element to the clipboard. You can paste it using the clipboard button in the top menu.

Edit

Allows you to edit the actions of the UI item (aka what should be controlled by the item), as well as other options such as coloring, margin, labels, ect. More information about this can be found below.

Delete

Removes the item from the layout

Lock

Enabling the lock will make it impossible the move/resize the item anymore. To disable the lock, simply click on the item again to open this dialog.

Ordering

The two to fore/background buttons change the order in which the UI items are shown on the screen. This might be useful for example if you want to move a background item behind other items.

Layout Settings

While in the layout editor, press the gear icon in the top menu to open the layout settings as shown below.

Layout settings

Here you can rename your layout, or change the general behaviour.

Name

The name that should be used for this layout

Behaviour

See section Behaviors. The Open on startup option is designed for scenarios where you want to limit the accessible parameters (the top menu is empty). Additionally, it's possible to password protect the ability to return to the main mixer.

This allows you to create a dedicated layout (for example for a wall mounted tablet) and completely restrict access to anything else in the app.

Orientations

For advanced use-cases it's possible to have separate layouts for portrait and landscape mode. Usually Combined is fine.

Top Menu

Indicates if the top menu should be shown. This is only relevant for layouts not using the override mixer layout behavior.

Password on exit

Enable to prompt the user for a password before allowing to exit the layout. This can be used for fixed installation purposes where the regular user should only have access to pre-defined layouts, and only certain people should be allowed to access the rest of the app.

This is only relevant for layouts not using the override mixer layout behavior.

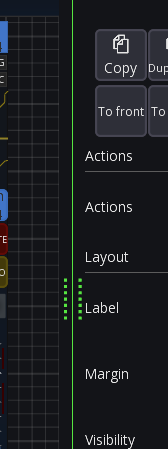

UI Settings

This section describes the settings available for the UI elements (aka when pressing the Edit button).

Layout settings

Label

The label is the text that should be shown on the UI element. You can use action tags to build labels that change based on the current value, for example: [label] [value]. All available tags can be found on the actions page.

Margin

Defines how big the margin should be of the UI element

Visibility

This setting controls the conditions under which the UI is visible.

Visibility Description
Always Item is always visible
Only SoF Item is only visible if SoF is active
Not SoF Item is only visible if SoF is not active

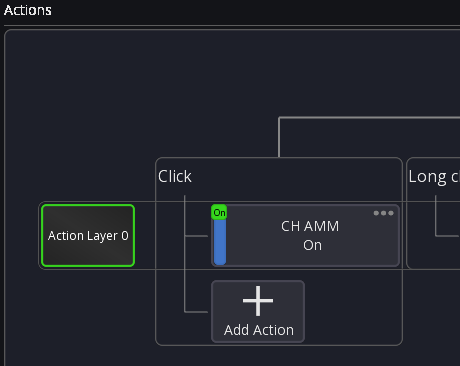

Actions

This list shows all actions assigned to the UI element. Click on an entry to open the action, press and hold an entry to remove it. See actions page for more details.

Note: Some UI elements may have more or less settings, these are described below.

UI items

This section describes all available UI items and their special configuration parameters.


Mixer

Shows all channels of the currently active layer. This also includes the meterbridge (if enabled in the app settings).

Mixer Mixer settings

Visible channels

Defines how many channels should be shown, by default it uses the value of your layer settings.

Layer offset

Changes which layer is currently shown, relative to the currently selected layer. You can use this to build up rows of mixer elements, each showing a different layer.

Channel strip settings

Defines how the channel strips should look. By default, the global settings are used.


Channel strip

Shows a single channel strip that can be assigned to a fixed, or dynamic channel (for example the current bus master).

Channel strip Channel strip settings

Similar to the mixer element, the look of this item can also be configured to be independent of the global channel strip settings.


List of buttons for controlling the sends on fader, fine and mute enable status.

Sof list


Sends on fader buttons

List of buttons for controlling the sends on fader state

Sof list


Layer list

List of buttons for selecting a layer.

Layer list


Button

A button can be used to toggle the status of an action.

Button

Action slots:

Slot Behavior
Click Finger needs to touch and lift
Long click Finger needs to touch for a longer period
Touch Finger needs to touch
Momentary Touch triggers "on", lift triggers "off"
Inv. Momentary Same as Momentary but inverted

Knob

A knob can be used to control a numeric value (like a send level or pan).

Knob


Label

A label can be used to show values like the current scene, or just to display text.

Label

Settings: Text position

Changes how the text is aligned on screen.
